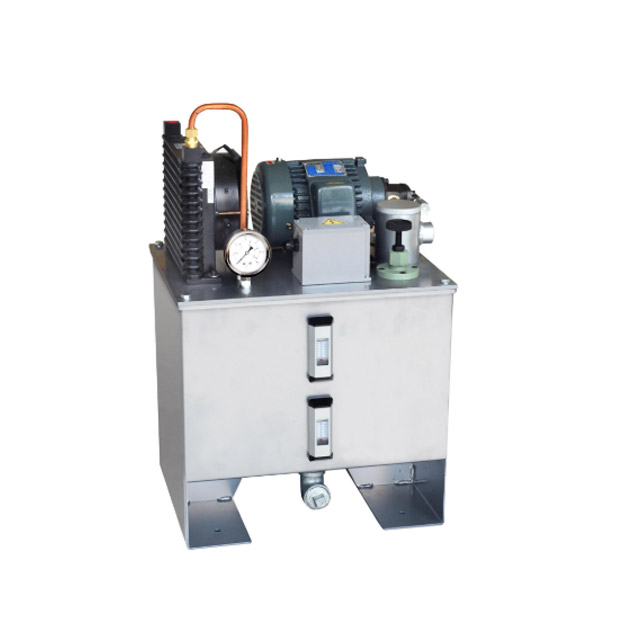

1. Oil can be recycled after lubrication process.
2. Include cycling device and filter to ensure oil quality.
3. Include cooling device to lower the oil temperature.
4. The float switch outputs signal when the oil level is low.
5. Include pressure valve and pressure gauge for adjustmen.
| Model | YLD |
| Voltage (Three Phase) | 220V/ 380V or 220V/ 440V |
| Power (HP) | 1/4 |
| Capacity of Terminal Output (A) | 0.3(Float switch) |
| 3(Pressure switch) | |
| Pole | 4 |
| Current Frequency (Hz) | 50/60 |
| Max. Output Pressure Mpa(kgf/cm2) | 0.5(5) |
| Output Volume (L/min) at Ø10 | 2.3 (TOP-11A) / 3.4 (TOP-12A) / 4.0 (TOP-13A) |
| Float Switch | O |
| Pressure Switch (kgf/cm2) | O |
| Pressure Gauge | O |
| Output Bore | Ø6 or Ø8 or Ø10 |
| Alarm Beeper | X |
| Tank Capacity (L) | 30/ 40 |
Note：
1. Metal tank of other capacity can be tailered.
2. Recommended oil viscosiry range is 30-150cSt.
3. The output volume is based on 60Hz and 110v/220v.
Because of continuous improvements, above specifications are subject to change without prior notice.
