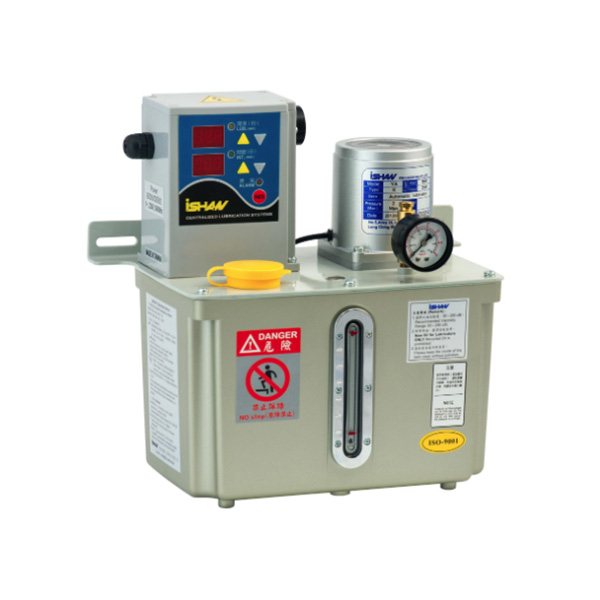

YAK-4L

Product Features

With temperature protection device for long term operation.
Three operation modes as,
1. Lubrication： The lubricator runs via lubrication time after power-on.b.
2. Intermittence： The lubricator runs via intermittent time after power-on.
3. Memory： The lubricator runs via the previous set after power-on.
Lubrication and intermittent time can be adjusted.
The float switch alarms and output signal when the oil level is low.
The pressure release device is included.
The function of fixed pressure for the pressure relief valve can prolong the system life
Lubrication time (second/minute) and intermittent time (second/minute /hour/cycle) are adjustable.
The indicator on the panel can display the operation of the lubricator.
The intermittent period can be adjusted via the machine’s action cycles.
“RES” key can force the lubricator to function.
The motor is of long-time operation.

Model	YAK
Voltage (Single Phase)	110V or 220V
Consumption Power (W)	56
Output Power (W)	25
Capacity of Terminal Output	DC/AC 250V 3A
Lubrication time (second/minute)	1-999
Intermittent Time (second/minute/hour/cycle)	1-999
Output Bore	Ø4 or Ø6
Max. Output Pressure Mpa (kgf/cm2)	2 (20)
Output Volume (cc/ min)	150
Pressure Release device	O
Float Switch	O
Pressure Switch (kgf/cm2)	X (Option)
Pressure Gauge	O
Alarm Beeper	O
Tank Capacity (L)	3 / 4(Metal Tank) / 8(Metal Tank) / 20 (Metal Tank)
Weight (kg)	4.8 / 5.2 / 9.4 / 18

Note： Because of continuous improvements, above specifications are subject to change without prior notice.
