DESCRIPTION

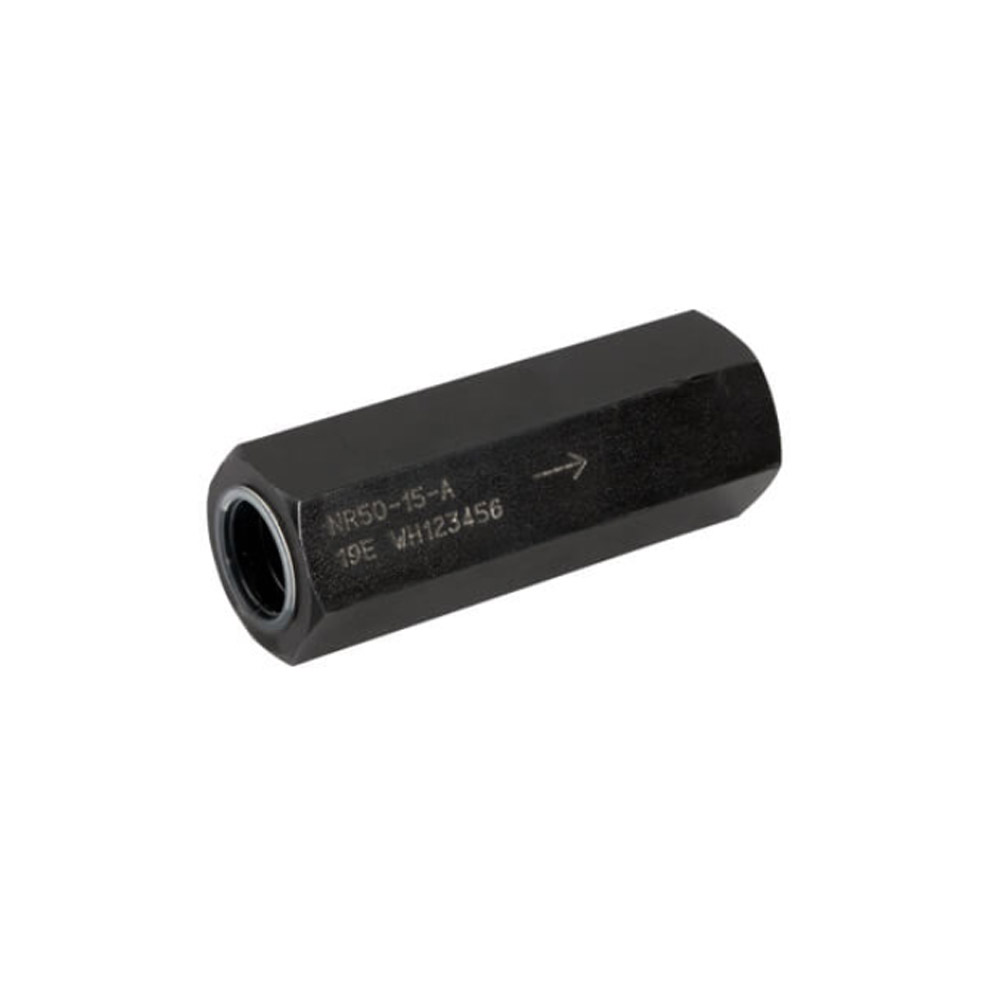

Check (Non-Return) Valves stop fluid flow in one direction while permitting free flow in the opposite direction.
The force exerted by fluid entering the valve direction unseats a spring loaded poppet permitting fluid to pass. The fluid pressure required to unseat the poppet is known as the force in the opposite direction push the poppet against the seat thus preventing fluid passage.
Maximum Pressure: 210 bar, 3000 psi
Cracking pressure: 0.35 – 4.5 bar, 5 – 65 psi
Flow range: 15 – 260 lpm, 4.0 – 68.7 US gpm
Porting: BSP
Material: Steel and Aluminum components in a Steel body
Straight through porting allows the valve to be connected directly in-line thus making the best use of restricted space
Customer can select from 7 valves offering a range of flow ratings and 4 cracking pressure settings
