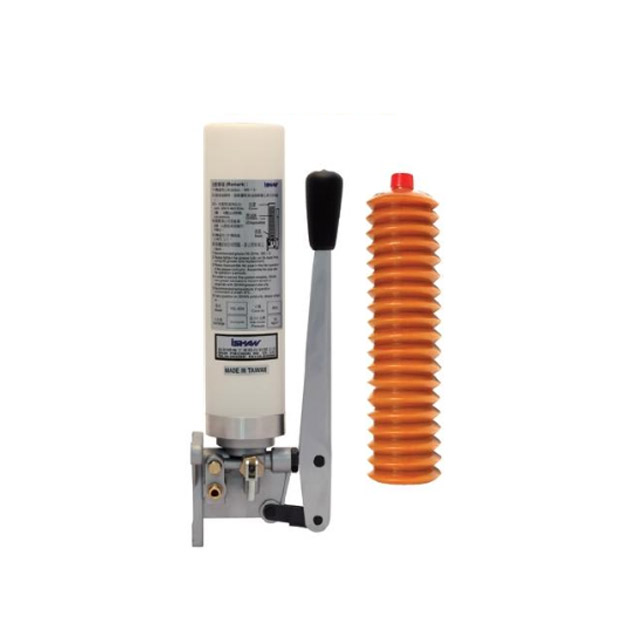

YGL-S04

SKU: YGL-S04 Categories: Grease Piston Lubricator, iSHAN, Piston Lubrication System

Product Features

1. Include double sealing device. The grease chunk will not be stocked in the cup.
2. The grease residue will not remain in the cup.
3. The output bore can be right or left via installation demand.
4. Refill by manual or electrical grease guns.
5. Include manual pressure release device.
6. YGL-S incorporates with piston grease distributor.

Detailed Specifications

Model	YGL-S
Max. Output Pressure Mpa (kgf/cm2)	10(100)
Output Volume (c.c./ cycle)	2
Output Bore	Ø6
Cup Capacity (cc)	800	1200	400(Tube Type)
Weight (kg)	1.9	2.2	1.4(Catridge not included)

Note： Because of continuous improvements, above specifications are subject to change without prior notice.

Assembly drawings
