Cutting steel and stainless 75mm x 75mm Thickness 6mm Since all the molds are incorporated in the FM-30, there is no need to replace the dies.
Use / Purpose
90° V notching / 45° Corner cutting / Angle bending / 90° corner cutting / Edge cutting.

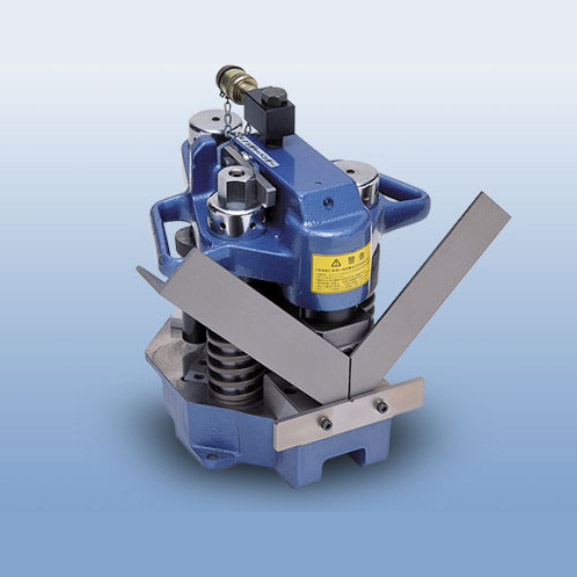

The FM 30 enables machining of stainless angle (75mm x thickness 6mm) with just a standard set.
Large automakers such as TOYOTA, HONDA, ISUZU use our 35RH pumps as hydraulic power source for jacking up, wire cutting, pressing steel and so on at their factory.
Since V noching and Corner cut dies are incorporated, there is no need to replace the dies.

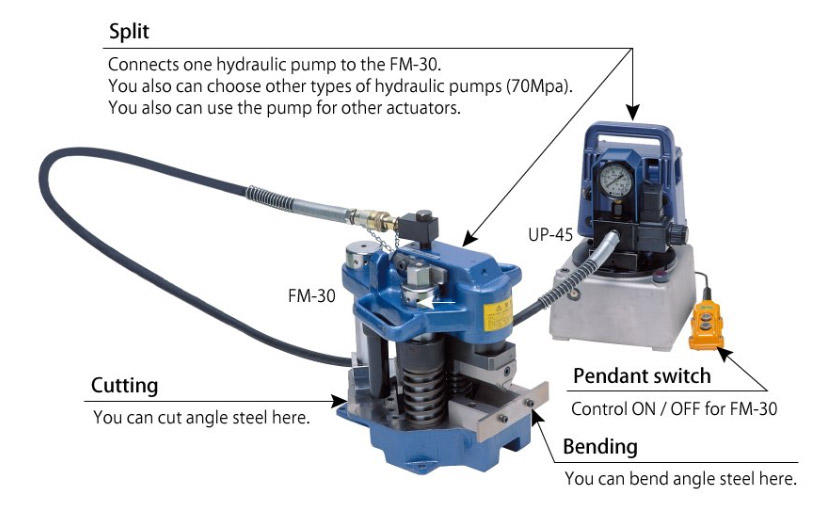

Since the main body and the hydraulic pump are separate, it is easy to carry to the work site.
Combination with the hydraulic pump currently used(70Mpa) is possible.
|Model||Machining ability (mm)||Single Acting Ram||Stroke (mm)||Dimension (mm)||Weight (kg)|
|FM-30||SS400 SUS304 Angle Steel 75 x 75x 6||170kN||230kN||35||316 (L) x 220 (W) x 295 (H)||50|
■5 tyeps of forming without changing mold

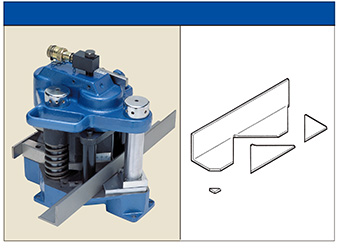

(1) 90°V notching
(2) 45°corner cutting

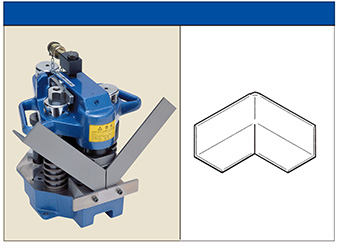

(3) Angle bending
(4) 90° corner cutting
(5) Edge cutting
