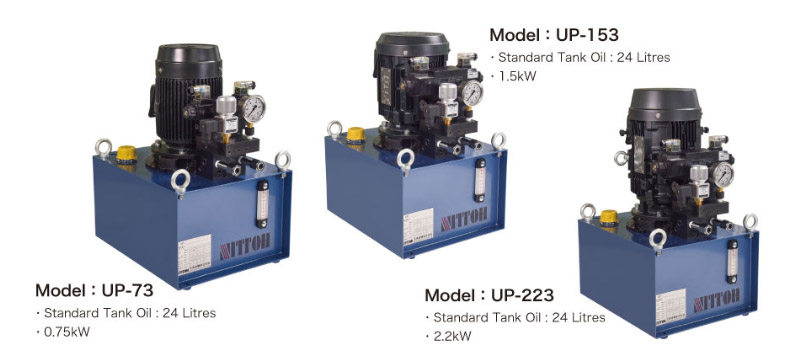

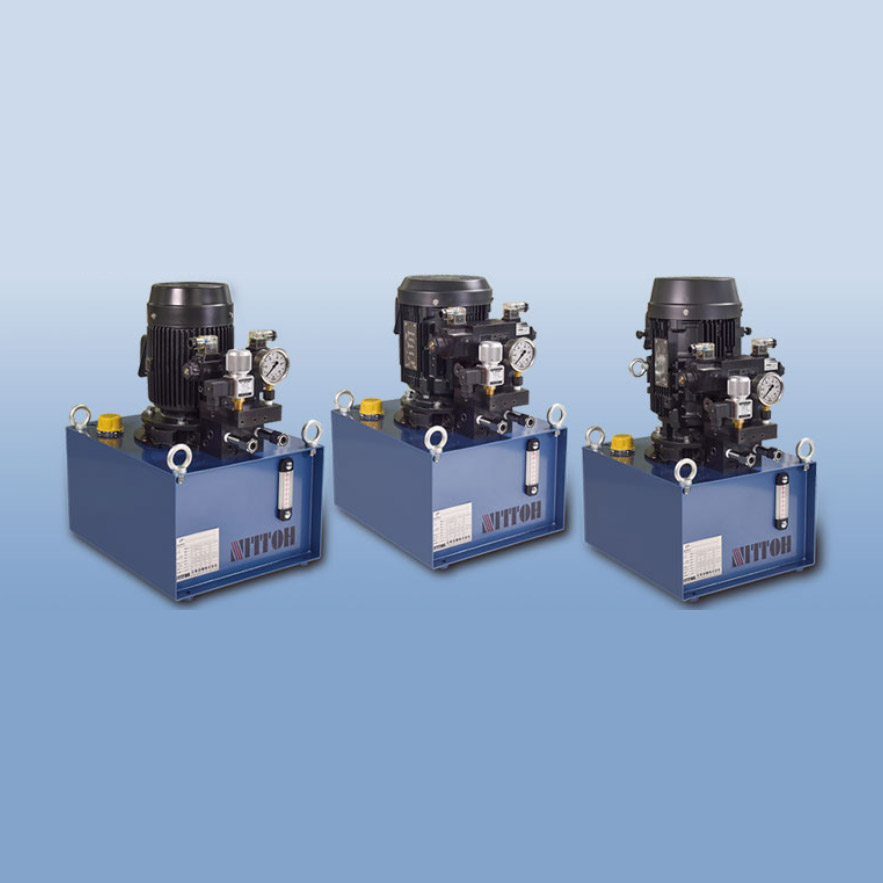

UP-73(0.75kW)/UP-153(1.5kW)/UP-223(2.2kW) series is various valves and accessories can be stacked for many applications. Power supply is three phase (from 200V).Structure is very simple because there is no piping in the pump body.
| Model | Motor (50/60Hz) | Pump (50/60Hz) | Oil | ||||||
| Insulation class | kW | Voltage | Amps | RPM | Output flow rate (L / m) | Tank size (Litre) |
Effectiv (Litre) |
||
| High 70 MPa | Low 7.0 MPa | ||||||||
| UP-73 | TEFC (Totally Enclosed Fan Cooled) E-type |
0.75 | 200 / 220 Three-phase |
3.8/3.4 | 1,440/1,730 | 0.45/0.54 | 4.5/5.4 | Standard 24 | 17 |
| Small 12 | 6 | ||||||||
| UP-153 | 1.5 | 6.8/6.4 | 1,445/1,740 | 0.9/1.1 | 8.4/10 | Standard 24 | 17 | ||
| Small 12 | 6 | ||||||||
| UP-223 | 2.2 | 10.6/9.4 | 1,460/1,755 | 1.45/1.75 | 11/13 | Standard 24 | 17 | ||
| Small 12 | 6 | ||||||||
