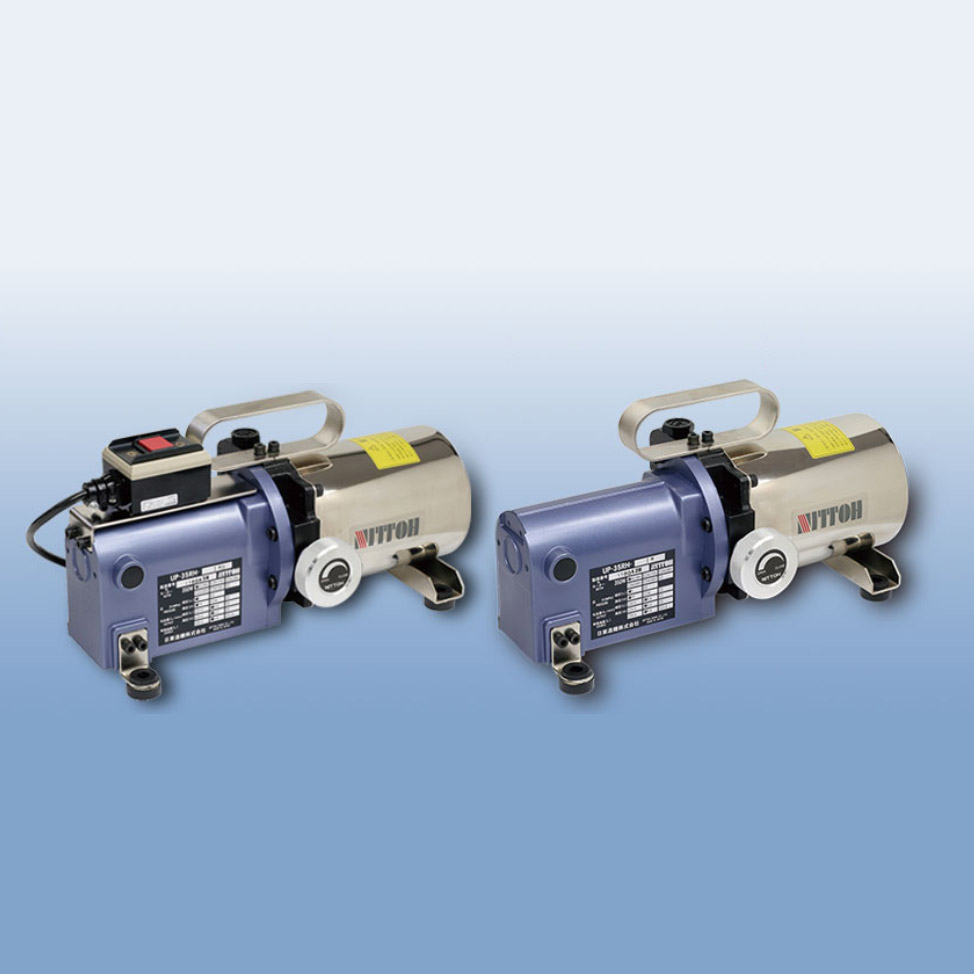

UP-35RH-1M series is an ultra-compact, low-cost, high-performance electric hydraulic pump. It can be used at various sites where a manual pump has been used until now.
| Model | Commutator Motor (50/60Hz) | Pump performance | Oil Volume (Liter) | Valve | |||||
| Insulation type | AC Single phase | Output(kW) | rpm | Max Pressure Mpa | Output flow rate | Tank | Effective | ||
| UP-35RH-1M/1MB | E type | 100V to 230V | 0.35 | 2000 | 70 | 0.3 – 0.6 | 1.0 | 0.8 | Manual Valve |
| UP-35RH-1ML/1MBL (Large Tank) |
2.0 | 1.6 | |||||||
More details
You can combine UP-35RH-1M pumps with multiple hydraulic tools on various occasions.
Large automakers such as TOYOTA, HONDA, ISUZU use our UP-35RH pumps as hydraulic power source for jacking up, wire cutting, pressing steel and so on at their factory.
Our pumps are widely used for replacement and pulling old water pipes at house, apartment, office and factory.
Sesami oil / Cammellia oil manufacturers also use hydraulic oil press to expel oil, which is conventional method.
In Denmark, our products are chosen as hydraulic power source for changing the wind power propellers.
