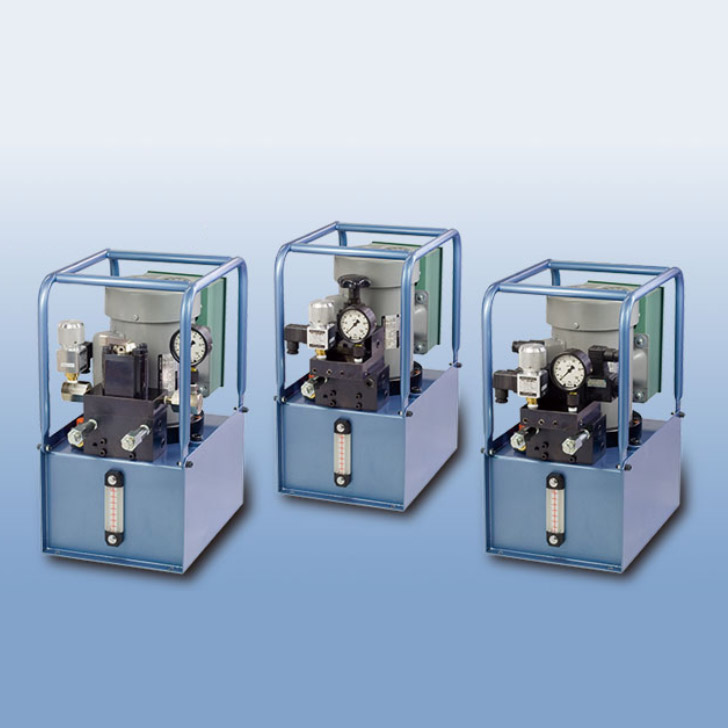

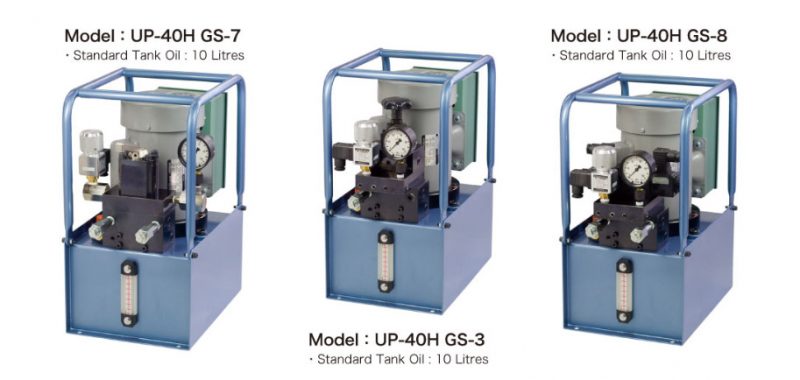

UP-40H series is LOW-NOISE pump adopting induction motor with Single-phase 100V (400W).By changing the wiring and the power plug, it can be changed to single phase 200V.
| Model | Motor (50/60Hz) | Output flow rate (L / m) | Oil | ||||||
| Insulation class | kW | Voltage (Single-phase) |
Amps | RPM | High 70 MPa | Low 7.0 MPa | Tank size (Litres) |
Effectiv (Litres) |
|
| UP-40H | Capacitor Start Motor E-type |
0.4 | 100 | 8.5/7.8 | 1,420/1,710 | 0.3/0.36 | 3.7/4.5 | 10 | 6 |
