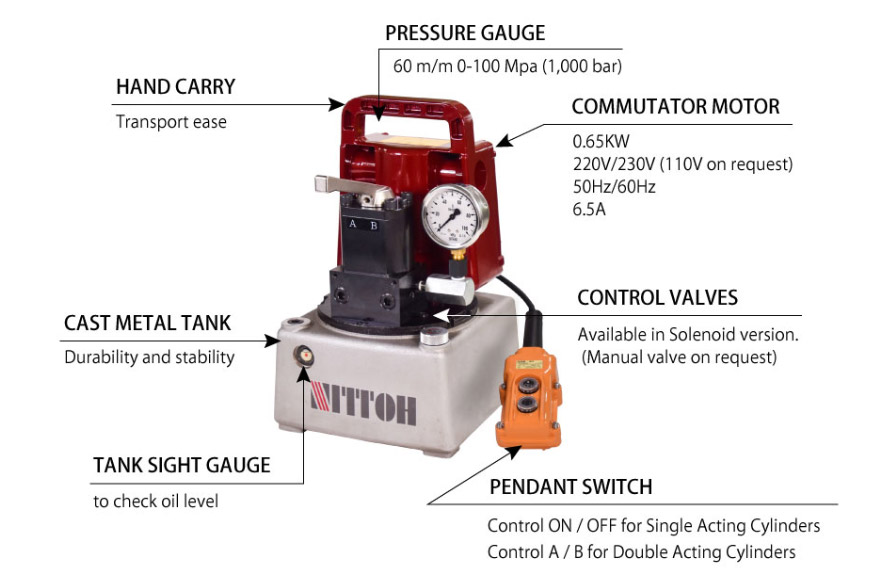

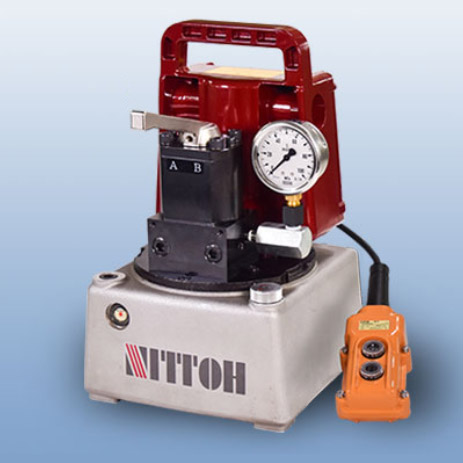

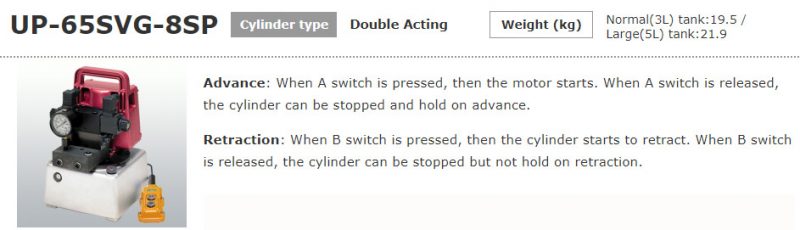

The compact, high-power 65SVG (70Mpa) series is incorporated as a source of hydraulic pressure at various places. It realized the best out put flow rate in this market.
|Model||Electric Motor||Mortor kW (2,000rpm)||Voltage(AC) 50Hz/60Hz||Amps||Output Flow Rate(Lpm)||Oil Volume (litres)|
|UP-65SVG Series||Commutator, Single phase||0.65||220/230||5.0||4.0||0.42||3.0||2.0|
Use / Purpose
Jack-up / Puller / Wire Cutter / Puncher / Pipe bender /Lifter
The UP-65SVG series realized the best out put flow rate inthis market. It is used in various scenes regardless of location.
The UP-65SVG series was adopted as a hydraulic source of jack-up to support inclined houses and condominiums during the 2011 Tōhoku earthquake and tsunami and the 2016 Kumamoto earthquakes.
It is also adopted as a source of hydraulic pressure for jack-up when transporting Shinkansen or train car by land.
Our UP-65SVG series is used when lifting bridge of highway (new Tomei Expressway etc) to piers.
We delivered our pump to Kyushu Electric Power Company as a source of hydraulic pressure when setting up a large power transmission tower.
